2.4 Inch Color TFT-LCD Accurate Otoacoustic Emission Detector MSLHS05
Product description
Otoacoustic emission technology
MA serial OAE Hearing Screener adopt the otoacoustic emission technology, use for the Distortion Product Otoacoustic Emissions(DPOAE) and Transient Evoked Otoacustic Emission(TEOEA) in newborn screening.
Testing function
With the testing function DPOAE & TEOAE, it can select independent the DPOAE or TEOAE, as well select both function at the same time.
Strong anti-interference function
Widely applicable for hearing test in clinics, office buildings and medical wards etc.
Automatic test
Automatic test,fast measurement speed , test result is accurate and reliable.
Stylish design
Stylish appearance design, light and portable, easy to operate.
Display and store
Color TFT-LCD monitor to display the menu and test results clearly
Printing
Can be printed immediately with bluetooth transmission technology
Probe design
Integrated probe structure design, test accuracy and fast
Main features
1. Stylish appearance design.Thinner and lighter.
2. Two options on display language : Chinese & English
3. Touch-button keypad for casy operation
4. Color TFT-LCD monitor to display the menu and test results clearly
5. Storage capacity : 200 test results for 50 patients.
6. Test results can be stored in the RAM, ready for printing at any time.
7. Widely applicable for hearing test in clinies,office buildings and medical wards to get reliable data.
8. Battery can support continuous operation up to 8 hours.
9. Detachable probe, easy to clean.
10. Compatible with computer to save and display the test rcsults on PC .
11. Quick test supported : DPOAE test finished within 10 seconds; TEOAE test within 30 seconds.
12. Three models optional with flexible configuration: Eithcr TEOAE or DPoAE,or both in one.
13. Wireless bluetooth printer is optional for wireless rapid printing in seconds
Product specifications
Functional Configuration
| Test Method | TEOAE+DPOAE |
| Number of Frequency Bands | 6/4 |
| Evaluation Method | Noise-weighted Averaging, Counting of Significant Signal Peaks/ Phase statistics |
| Stimulus Type | Click Sound/ Primary tone pair,F2/F1=1.22 |
| Stimulus Level | 60~80dB /50~65dB SPL |
| Frequency Range | 1.5kHz~4kHz/2kHz,3kHz ,4kHz ,5kHz |
| S/N | 6dB |
| Pass | 3 or more of the 6 frequencies/ 3 or more of the 4 frequencies |
| Display | Measurement Progress, S/N |
| Result Display | PASS/REFER |
Main host
| Host Device Size | 180*62*21mm(L*W*D) |
| Host Device Net Weight | About 215 G |
| Monitor | 2.4 Inch color TFT-LCD |
| Keypad | 5 keys (Up, Down, Left, Right, OK) |
| RAM | At most 200 test results for 50 patients. |
| Power Adapter | Input 100-240AC 50/60Hz, Output DC 5V 1000MA Built-in battery: DC3.7V |
| Interface | Use the docking station for charging and data communication with the host computer |
| Printer | Standard 58mm bluetooth thermal printer. |
Probe
| Probe host | Integrated probe structure design, contain receiving sensor |

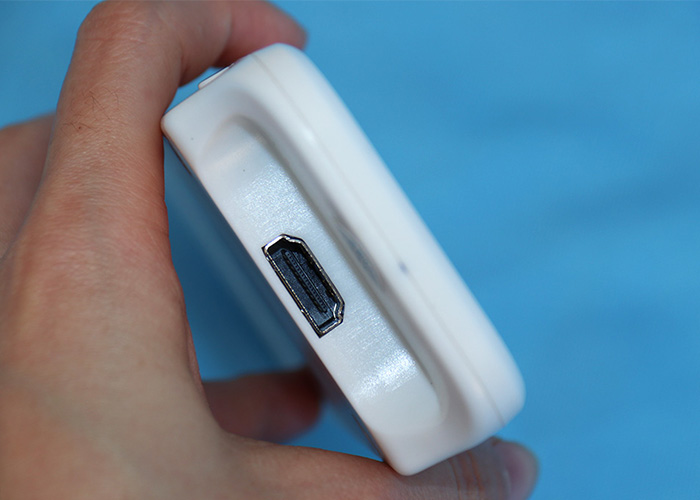

| Probe Interface | HDMI |
| Probe Cable Length | 90 CM. |
| Earplugs | Multiple sizes available |
